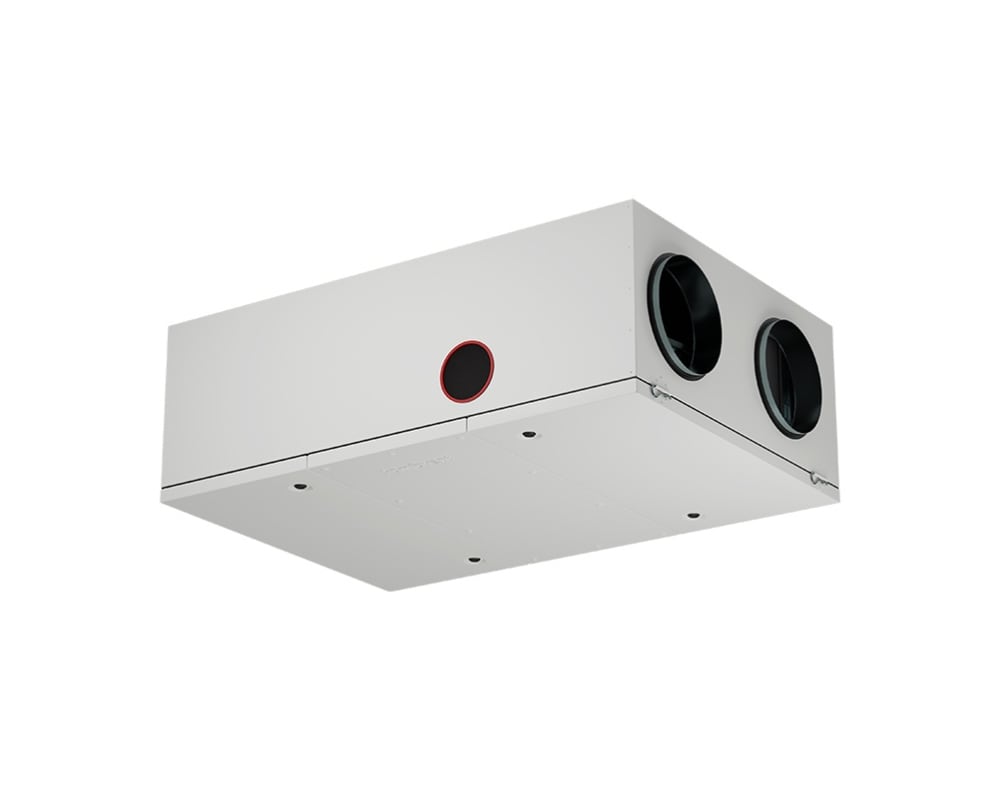

Komfovent Domekt R 700 F
Efficient A+ energy class ultra-slim ceiling-mounted ventilation unit with a rotary heat exchanger. The unit is equipped with the Smart C6M control system, allowing convenient control from both the panel and smart devices. An ideal choice for large private houses and commercial spaces where high airflow (764 m³/h) and high heat recovery (83%) are required, but installation space is limited.
Key Features
Kondenseeriv pöördsoojusvaheti
CAV (Constant Air Volume) funktsioon
Üliõhuke disain (kõrgus 420 mm)
A+ energiatõhusus
Integreeritud veebiserver
Smart C6M juhtimissüsteem
Suur õhuvool (764 m³/h)
Technical Capability
Available Models
Domekt R 700 F C6M
R-700-F-C6M Energiaklass A+
Mõõdud (L×K×S) 850 × 420 × 1240 mm
Toitepinge 230 V
Comparison Table
Full technical specifications by model
Scroll left/right
| Parameter | Domekt R 700 F C6M R-700-F-C6M |
|---|---|
| Tehnilised andmed | |
| Energiaklass | A+ |
| Mõõdud (L×K×S) ( mm ) | 850 × 420 × 1240 |
| Toitepinge ( V ) | 230 |
| Maksimaalne voolutugevus ( A ) | 11.7 |
| Elektrikerise võimsus ( kW ) | 2 |
| Maksimaalne õhuvool ( m³/h ) | 764 |
| Seadme kaal ( kg ) | 93 |
| Soojustagastuse efektiivsus ( % ) | 83 |
| Akustilised andmed | |
| Helirõhu tase (3m distantsil) ( dB(A) ) | 35 |
