Komfovent

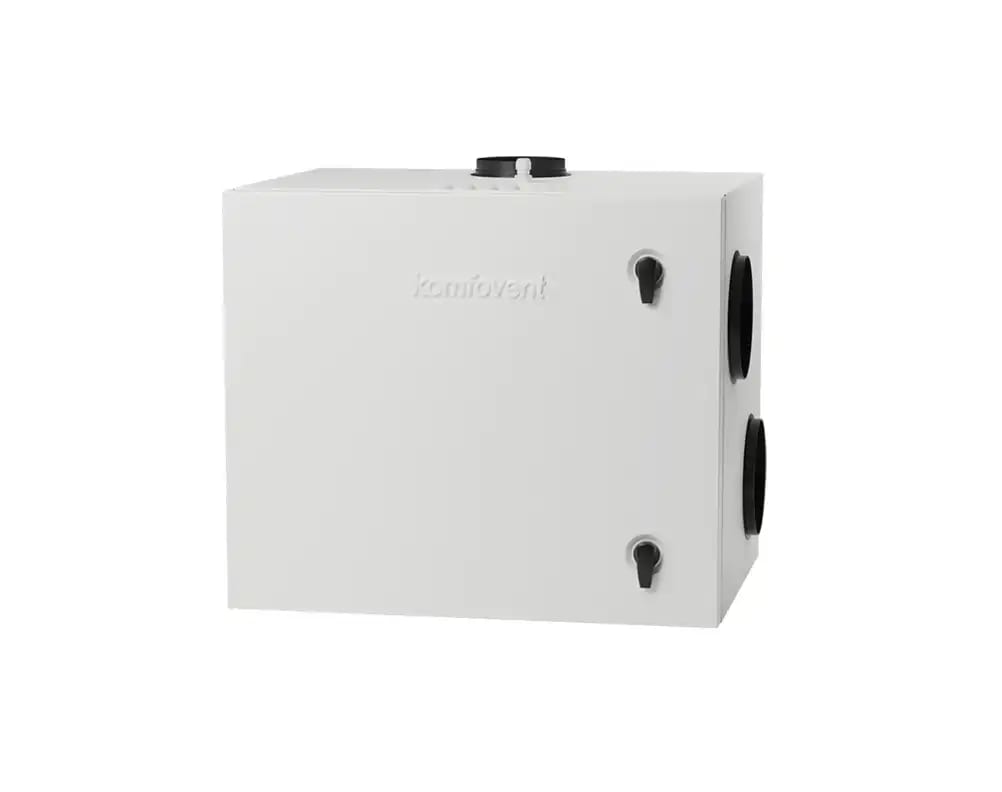

Komfovent Domekt R 400 H
A+ energy class horizontal ventilation unit with a rotary heat exchanger. Due to its shape and construction, it is ideal for installation in an attic or other horizontal locations. The unit is equipped with the Smart C6M control system and is very quiet.
Key Features
Kondenseeriv pöördsoojusvaheti
A+ energiatõhusus
Integreeritud veebiserver
Smart C6M juhtimissüsteem
Ideaalne pööningule
Väga vaikne (32 dB(A) 3m peal)
Horisontaalne paigaldus (H)
Technical Capability
Available Models
Domekt R 400 H C6M
R-400-H-C6M Energiaklass A+
Mõõdud (L×K×S) 515 × 567 × 660 mm
Toitepinge 230 V
Comparison Table
Full technical specifications by model
Scroll left/right
| Parameter | Domekt R 400 H C6M R-400-H-C6M |
|---|---|
| Tehnilised andmed | |
| Energiaklass | A+ |
| Mõõdud (L×K×S) ( mm ) | 515 × 567 × 660 |
| Toitepinge ( V ) | 230 |
| Maksimaalne voolutugevus ( A ) | 7.3 |
| Elektrikerise võimsus ( kW ) | 1 |
| Maksimaalne õhuvool ( m³/h ) | 500 |
| Soojustagastuse efektiivsus ( % ) | 84 |
| Seadme kaal ( kg ) | 49 |
| Akustilised andmed | |
| Helirõhu tase (3m distantsil) ( dB(A) ) | 32 |
