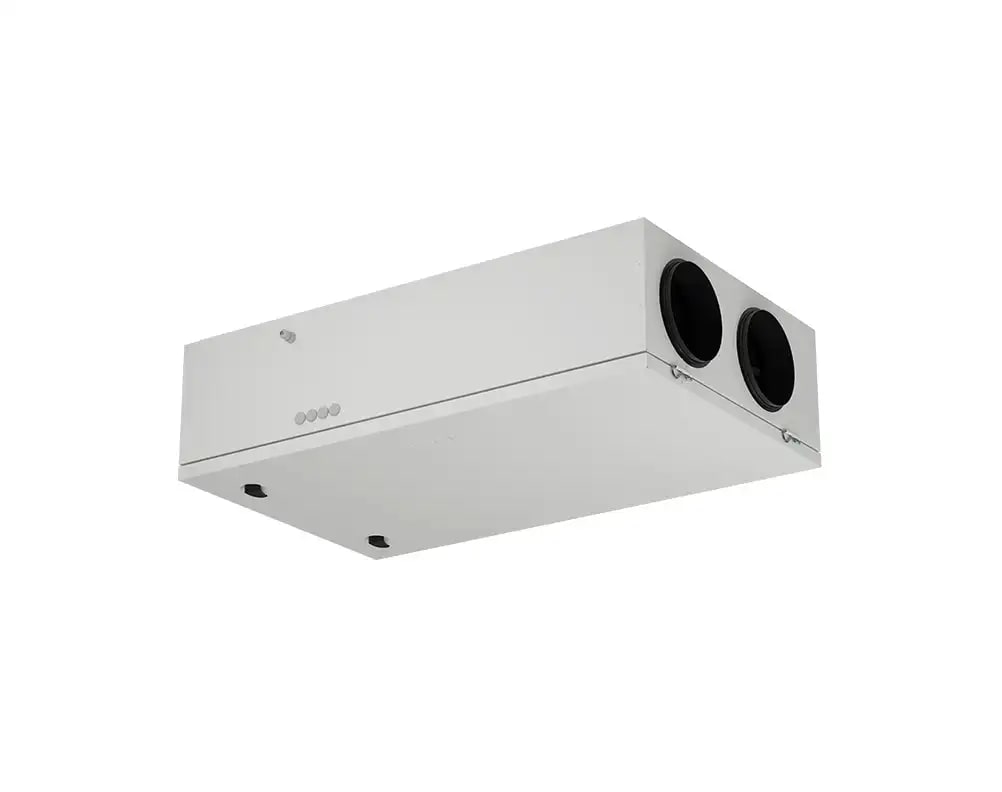

Komfovent Domekt R 400 F
A+ energy class ultra-slim ventilation unit with a rotary heat exchanger. Height only 310 mm, making it ideal for installation behind suspended ceilings or other tight spaces. The unit is equipped with the Smart C6M control system and is exceptionally quiet.
Key Features
Kondenseeriv pöördsoojusvaheti
CAV (Constant Air Volume) funktsioon
Üliõhuke disain (kõrgus 310 mm)
A+ energiatõhusus
Smart C6M juhtimissüsteem
Väga vaikne (33 dB(A) 3m peal)
Technical Capability
Available Models
Domekt R 400 F C6M
R-400-F-C6M Energiaklass A+
Mõõdud (L×K×S) 700 × 310 × 1170 mm
Toitepinge 230 V
Comparison Table
Full technical specifications by model
Scroll left/right
| Parameter | Domekt R 400 F C6M R-400-F-C6M |
|---|---|
| Tehnilised andmed | |
| Energiaklass | A+ |
| Mõõdud (L×K×S) ( mm ) | 700 × 310 × 1170 |
| Toitepinge ( V ) | 230 |
| Maksimaalne voolutugevus ( A ) | 7.3 |
| Elektrikerise võimsus ( kW ) | 1 |
| Maksimaalne õhuvool ( m³/h ) | 421 |
| Seadme kaal ( kg ) | 65 |
| Soojustagastuse efektiivsus ( % ) | 83 |
| Akustilised andmed | |
| Helirõhu tase (3m distantsil) ( dB(A) ) | 33 |
