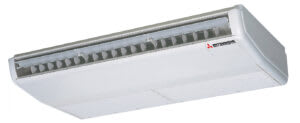

Mitsubishi PAC seeria laealus-tüüpi siseosadega komplektid FDE
Võimas, vaikne ja ruumisäästlik lahendus – ideaalne ärikeskkonda ja suurtesse ruumidesse
Technical Capability
Available Models
FDE40VH/SRC40ZSX-W (A++/A+)
FDE40VH / SRC40ZSX-W MUDEL FDE40VH / SRC40ZSX-W
Energiaklass (küte/jahutus) A++ / A+
SCOP 4.10
FDE50VH/SRC50ZSX-W (A++/A)
FDE50VH / SRC50ZSX-W MUDEL FDE50VH / SRC50ZSX-W
Energiaklass (küte/jahutus) A++ / A
SCOP 4.10
FDE60VH/SRC60ZSX-W (A++/A+)
FDE60VH / SRC60ZSX-W MUDEL FDE60VH / SRC60ZSX-W
Energiaklass (küte/jahutus) A++ / A+
SCOP 4.20
FDE71VH/FDC71VNX-W (B/A+)
FDE71VH / FDC71VNX-W MUDEL FDE71VH / FDC71VNX-W
Energiaklass (küte/jahutus) B / A+
SCOP 3.40
FDE100VH/FDC100VSA-W (A/A)
FDE100VH / FDC100VSA-W MUDEL FDE100VH / FDC100VSA-W
Energiaklass (küte/jahutus) A / A
SCOP 3.70
FDE100VH/FDC100VSX-W (A+/A+)
FDE100VH / FDC100VSX-W MUDEL FDE100VH / FDC100VSX-W
Energiaklass (küte/jahutus) A+ / A+
SCOP 4.20
FDE125VH/FDC125VSA-W
FDE125VH / FDC125VSA-W MUDEL FDE125VH / FDC125VSA-W
Energiaklass (küte/jahutus) A / A
SCOP 3.90
FDE125VH/FDC125VSX-W
FDE125VH / FDC125VSX-W MUDEL FDE125VH / FDC125VSX-W
Energiaklass (küte/jahutus) A+ / A+
SCOP 4.40
FDE140VH/FDC140VSA-W
FDE140VH / FDC140VSA-W MUDEL FDE140VH / FDC140VSA-W
Energiaklass (küte/jahutus) A / A
SCOP 3.90
FDE140VH/FDC140VSX-W
FDE140VH / FDC140VSX-W MUDEL FDE140VH / FDC140VSX-W
Energiaklass (küte/jahutus) A+ / A+
SCOP 4.40
Comparison Table
Full technical specifications by model
Scroll left/right
| Parameter | FDE40VH/SRC40ZSX-W (A++/A+) FDE40VH / SRC40ZSX-W | FDE50VH/SRC50ZSX-W (A++/A) FDE50VH / SRC50ZSX-W | FDE60VH/SRC60ZSX-W (A++/A+) FDE60VH / SRC60ZSX-W | FDE71VH/FDC71VNX-W (B/A+) FDE71VH / FDC71VNX-W | FDE100VH/FDC100VSA-W (A/A) FDE100VH / FDC100VSA-W | FDE100VH/FDC100VSX-W (A+/A+) FDE100VH / FDC100VSX-W | FDE125VH/FDC125VSA-W FDE125VH / FDC125VSA-W | FDE125VH/FDC125VSX-W FDE125VH / FDC125VSX-W | FDE140VH/FDC140VSA-W FDE140VH / FDC140VSA-W | FDE140VH/FDC140VSX-W FDE140VH / FDC140VSX-W |
|---|---|---|---|---|---|---|---|---|---|---|
| Tehnilised andmed | ||||||||||
| MUDEL | FDE40VH / SRC40ZSX-W | FDE50VH / SRC50ZSX-W | FDE60VH / SRC60ZSX-W | FDE71VH / FDC71VNX-W | FDE100VH / FDC100VSA-W | FDE100VH / FDC100VSX-W | FDE125VH / FDC125VSA-W | FDE125VH / FDC125VSX-W | FDE140VH / FDC140VSA-W | FDE140VH / FDC140VSX-W |
| Energiaklass (küte/jahutus) | A++ / A+ | A++ / A | A++ / A+ | B / A+ | A / A | A+ / A+ | A / A | A+ / A+ | A / A | A+ / A+ |
| Siseosa müratase dB(A) (Hi/Lo) | 34 / 28 | 36 / 30 | 38 / 33 | 43 / 35 | 45 / 38 | 45 / 38 | 47 / 40 | 47 / 40 | 49 / 42 | 49 / 42 |
| Siseosa mõõtmed (KxLxS) ( mm ) | 230 x 960 x 680 | 230 x 960 x 680 | 230 x 960 x 680 | 230 x 960 x 680 | 230 x 1280 x 680 | 230 x 1280 x 680 | 230 x 1280 x 680 | 230 x 1280 x 680 | 230 x 1280 x 680 | 230 x 1280 x 680 |
| Välisosa müratase dB(A) (küte/jahutus) | 51 / 49 | 51 / 49 | 53 / 52 | 54 / 53 | 55 / 55 | 55 / 55 | 58 / 57 | 58 / 57 | 58 / 58 | 58 / 58 |
| Välisosa mõõtmed (KxLxS) ( mm ) | 640 x 800(+71) x 290 | 640 x 800(+71) x 290 | 640 x 800(+71) x 290 | 845 x 970 x 370 | 845 x 970 x 370 | 845 x 970 x 370 | 845 x 970 x 370 | 845 x 970 x 370 | 845 x 970 x 370 | 845 x 970 x 370 |
| Külmaaine tüüp | R32 | R32 | R32 | R32 | R32 | R32 | R32 | R32 | R32 | R32 |
| Välisosa kaal ( kg ) | 45 | 45 | 45 | 70 | 73 | 73 | 78 | 78 | 78 | 78 |
| Külmaaine kogus ( kg ) | 1.30 (15) | 1.30 (15) | 1.30 (15) | 2.25 (30) | 2.70 (30) | 2.70 (30) | 2.90 (30) | 2.90 (30) | 3.20 (30) | 3.20 (30) |
| Lisatäide ( g/m ) | 20 | 20 | 20 | 20 | 45 | 45 | 45 | 45 | 45 | 45 |
| Toru mõõt ( vedelik / gaas ) | 1/4” / 1/2” | 1/4” / 1/2” | 1/4” / 1/2” | 1/4” / 1/2” | 3/8” / 5/8” | 3/8” / 5/8” | 3/8” / 5/8” | 3/8” / 5/8” | 3/8” / 5/8” | 3/8” / 5/8” |
| Toru pikkus / kõrgusvahe ( m ) | 30 / 20 | 30 / 20 | 30 / 20 | 30 / 20 | 50 / 30 | 50 / 30 | 50 / 30 | 50 / 30 | 50 / 30 | 50 / 30 |
| Töövahemik (küte/jahutus ( °C) ) | -35 ~ 24 / -15 ~ 46 | -35 ~ 24 / -15 ~ 46 | -35 ~ 24 / -15 ~ 46 | -20 ~ 24 / -15 ~ 46 | -20 ~ 24 / -15 ~ 46 | -20 ~ 24 / -15 ~ 46 | -20 ~ 24 / -15 ~ 46 | -20 ~ 24 / -15 ~ 46 | -20 ~ 24 / -15 ~ 46 | -20 ~ 24 / -15 ~ 46 |
| Toide ( A ) | 15.0 | 15.0 | 15.0 | 13.5 | 16.0 | 16.0 | 17.5 | 17.5 | 19.0 | 19.0 |
| Kirjeldus | Väärtus | Väärtus | Väärtus | Väärtus | Väärtus | Väärtus | Väärtus | Väärtus | Väärtus | Väärtus |
| Seadme kaal ( kg ) | 25 | 25 | 25 | 25 | 34 | 34 | 34 | 34 | 34 | 34 |
| Maksimaalne õhuvool ( m³/h ) | 1020 | 1110 | 1230 | 1260 | 1620 | 1620 | 1800 | 1800 | 1980 | 1980 |
| Efektiivsus | ||||||||||
| SCOP | 4.10 | 4.10 | 4.20 | 3.40 | 3.70 | 4.20 | 3.90 | 4.40 | 3.90 | 4.40 |
| SEER | 7.10 | 6.90 | 7.00 | 5.60 | 5.50 | 6.40 | 5.60 | 6.30 | 5.40 | 6.20 |
| Technical Specs | ||||||||||
| Jahutusvõimsus ( kW ) | 1.0 ~ 6.2 | 1.0 ~ 6.2 | 1.0 ~ 6.9 | 2.0 ~ 8.0 | 3.2 ~ 10.0 | 2.2 ~ 10.0 | 12.1 | 12.1 | 13.4 | 13.4 |
| Võimsus | ||||||||||
| Küttevõimsus ( kW ) | 1.0 ~ 6.2 | 1.0 ~ 6.2 | 1.0 ~ 6.9 | 2.0 ~ 9.0 | 2.58 | 2.2 ~ 12.5 | 3.5 ~ 14.5 | 3.40 | 3.6 ~ 16.0 | 3.6 ~ 16.0 |
